Optical Filters and Specialty Glasses
Faraday Rotator Glass
- SUMITA’s Faraday rotator glass is a glass material for a faraday rotator optical element, which is ideal for isolators for visible light and faraday cell polarimeters.
- SUMITA provides two types of faraday rotator glasses - VL5000 and VR1000. VL5000 is a paramagnetic glass with a high rotational characteristic, and VR1000 is a diamagnetic glass, suitable for use of lead glass replacement.
- RoHS: Compliant
Specifications
| Paramagnetic glass | Diamagnetic glass | ||
|---|---|---|---|
| VL5000 | VL2200* | VR1000 | |
| Verdet constant V (min/Oe/cm) (632.8 nm, 300K) | -0.487 | -0.22 | 0.098 |
| Transformation point Tg (℃) | 767 | 716 | 425 |
| Thermal expansion (α×10-7) | 86 | 58 | 98 |
| Specific gravity S.g | 6.13 | 4.15 | 7.06 |
* A reference product; please contact us for details.
VL5000 Paramagnetic Glass
-

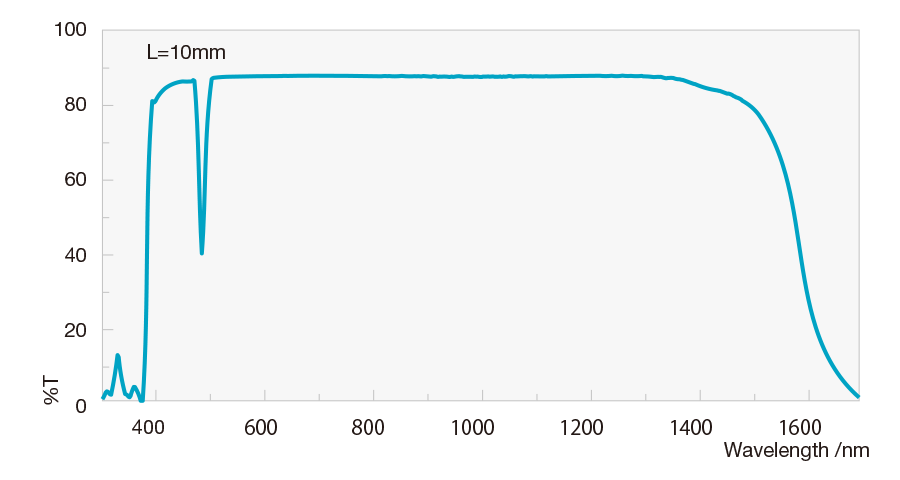

Transmission Spectrum
-

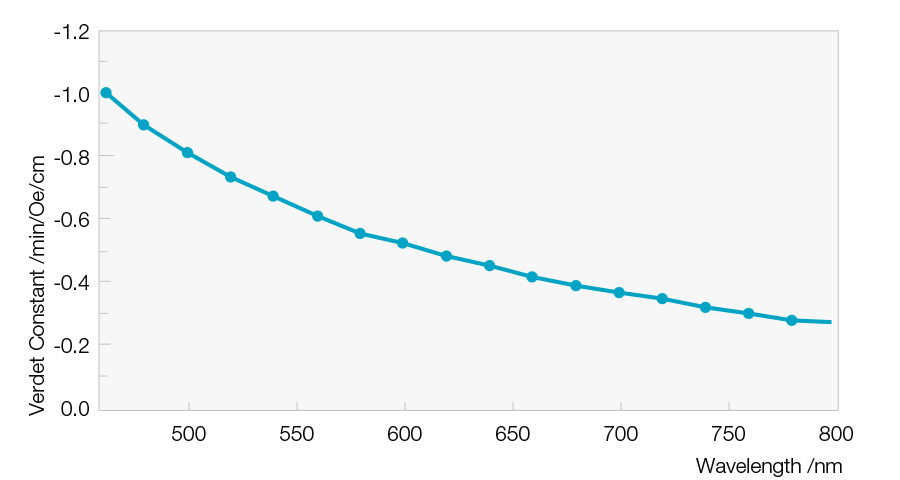

Verdet Constant (V) by Wavelength
Paramagnetic Glass VL2200
-

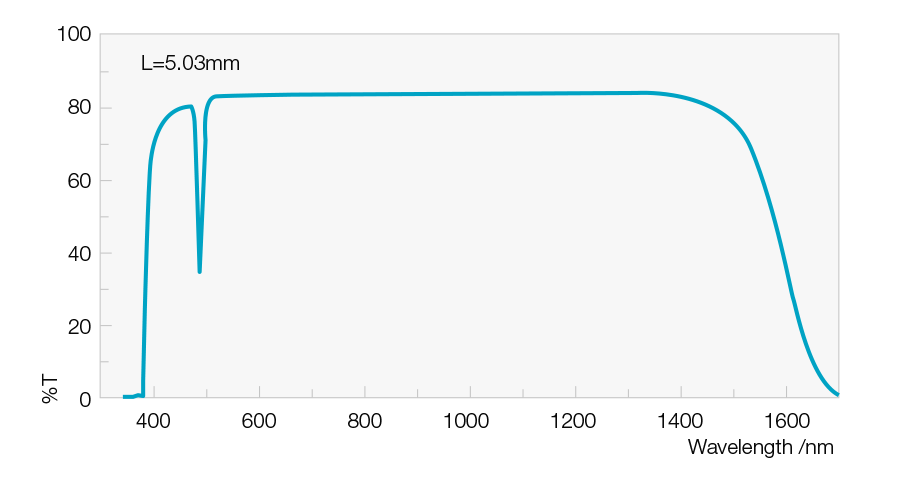

Transmission Spectrum
Diamagnetic Glass VR1000
-
Transmission Spectrum
-

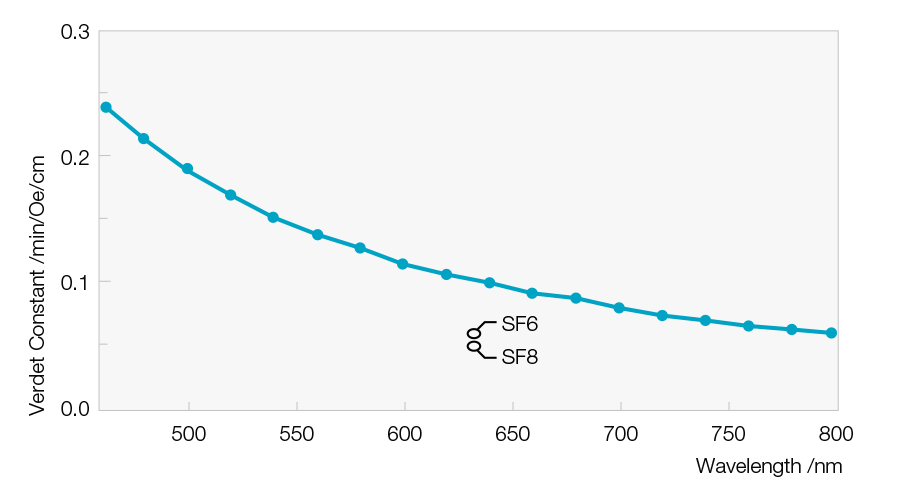

Verdet Constant V by Wavelength
