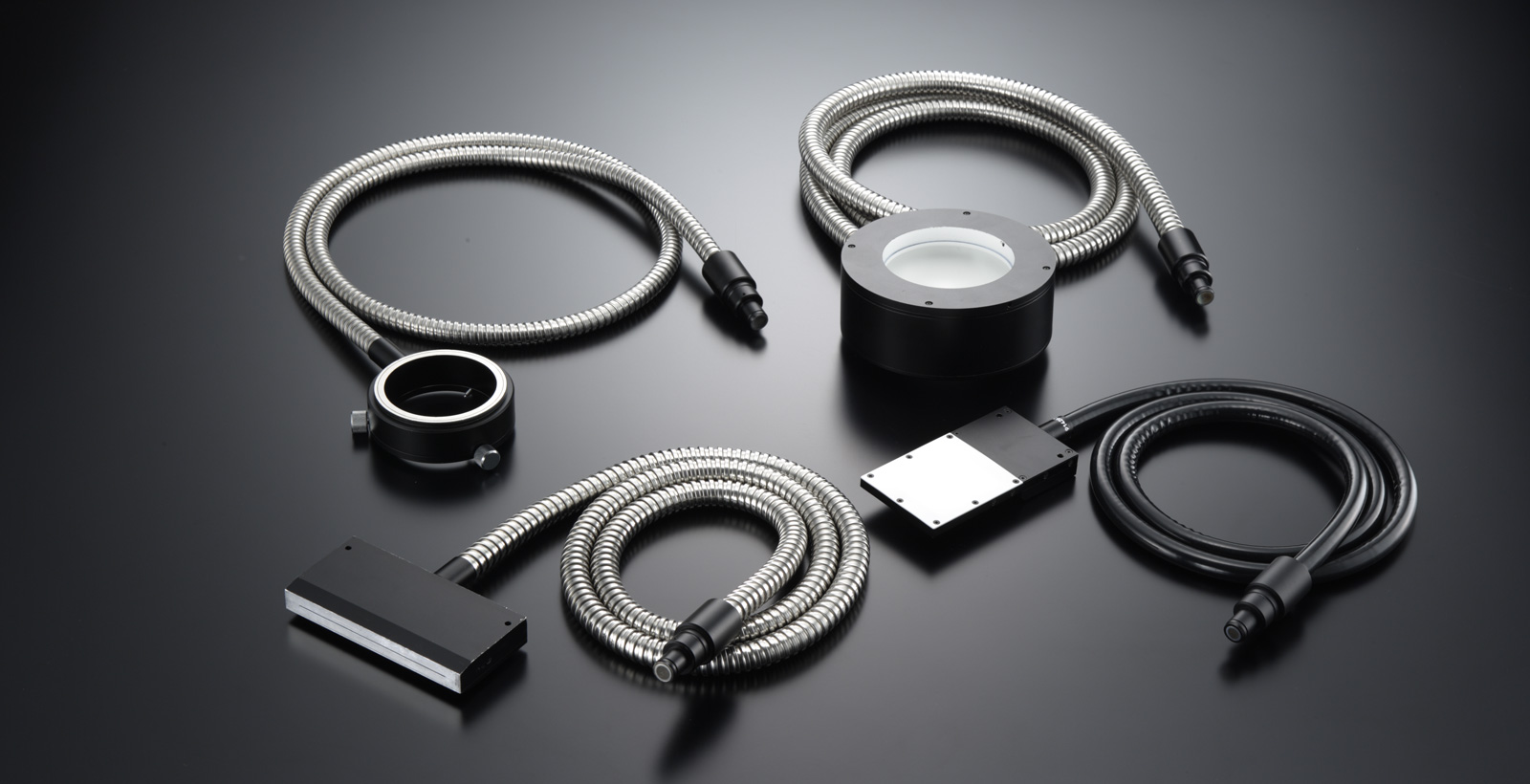

Fiber Optic Bundles/ Light Guides
More than 90% of our light guides are custom-made.
Fiber optic light guides are flexible bundles of optical fibers used for the controlled delivery of light. Custom fiber optic light guides are available upon request.
-
Flexible Fiber Optic Bundles
-
Gooseneck Fiber Optic Bundles
-
Multi Branch Fiber Optic Bundles
-
Fiber Optic Line Lights
-
Fiber Optic Ring Light Guides
-
Fiber Optic Backlights
Heat-fused Light Guides
Improvement in light intensity and heat resistance by fusing the end tip
Hot-fused light guide is a light guide whose individual fibers are fused together by high temperature instead of epoxy.
Epoxy is not good for light guides in absorption of light that prevents from light transmitting and creation of heat at the end of the light guides.
As hot-fused light guides is not bonded with epoxy, they improve in heat resistance.
Also light intensity is improved with extra optical fibers packed in the space where epoxy is originally existed.
* Bundle end geometry: only round shape is available for fused light guides

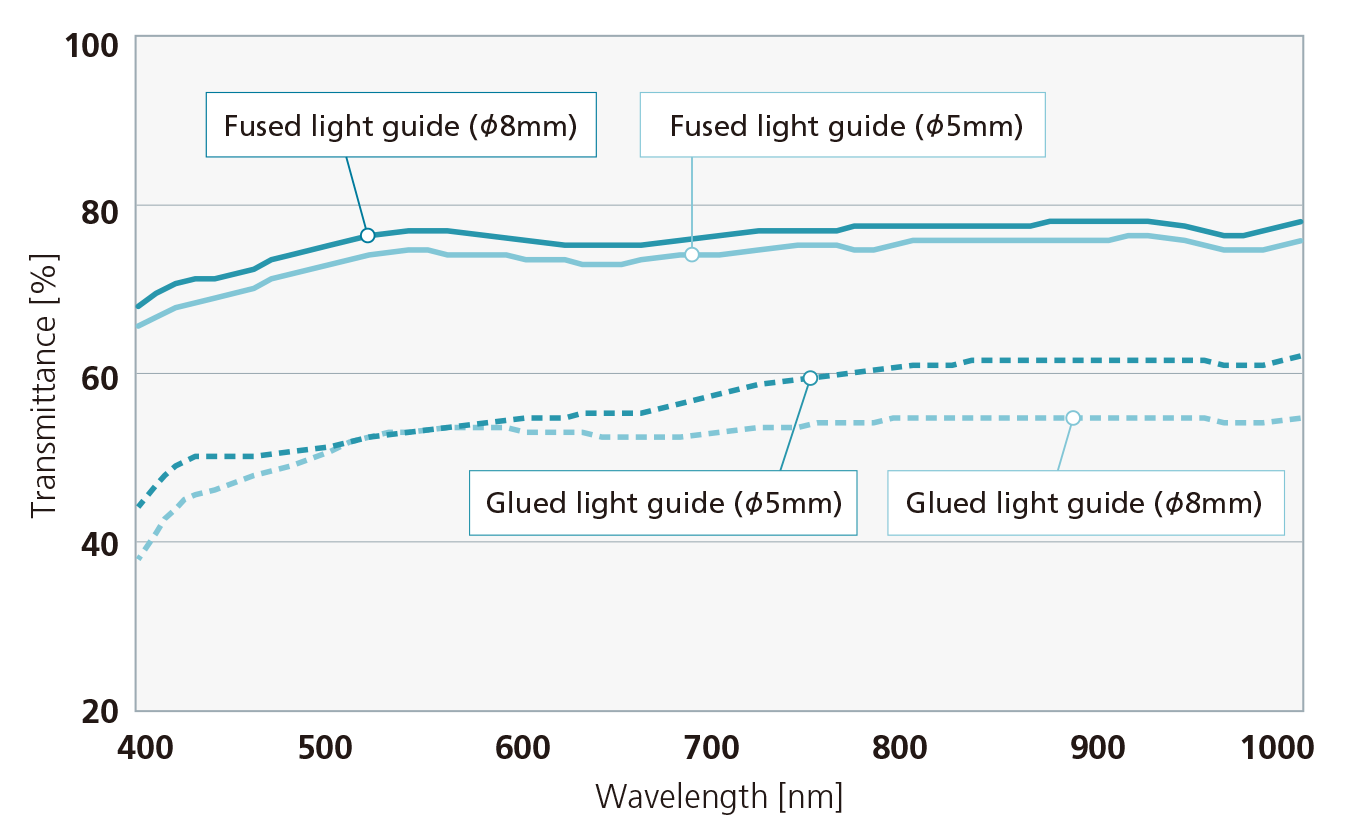

Transmission

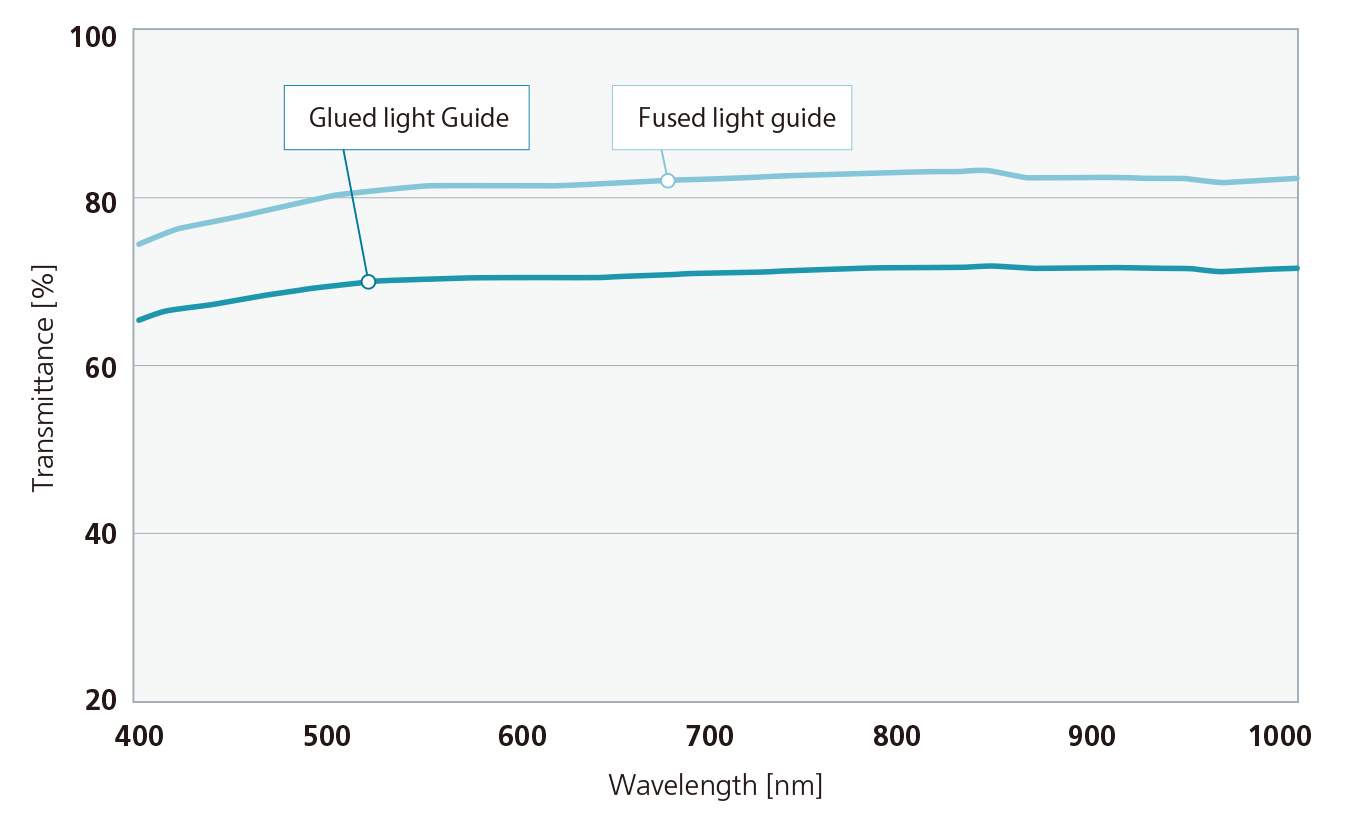

Quartz Fiber Optic Light Guides
Protective Hose Material and Flexible Tubing
You can choose appropriate jacketing depending on the application and conditions. We can change the internal structure of the light guide, and apply coating to give light guides bend-tolerance and wear-resistance. Sumita's in-house manufacturing gives you a lot of flexibility to change the design and custom the product.
Flexible Fiber Optic Bundle
Custom-made products are available upon request.
Flexible fiber optic bundle φ3
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF3-1-LP(AAAP-001S) | φ3 | PVC spring tube | 1000 |
| 1500 | |||
| 2000 | |||
| GF3-1-LR(AAAR-001S) | Flexible SUS tube | 1000 | |
| 1500 | |||
| 2000 |
Flexible fiber optic bundle φ5
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF5-1-LP(AAAP-002S) | φ5 | PVC spring tube | 1000 |
| 1500 | |||
| 2000 | |||
| GF5-1-LR(AAAR-002S) | Flexible SUS tube | 1000 | |
| 1500 | |||
| 2000 |
Flexible fiber optic bundle φ8
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF8-1-LP(AAAP-003S) | φ8 | PVC spring tube | 1000 |
| 1500 | |||
| 2000 | |||
| GF8-1-LR(AAAR-003S) | Flexible SUS tube | 1000 | |
| 1500 | |||
| 2000 |
Flexible fiber optic bundle φ10
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF10-1-LP(AAAP-004S) | φ10 | PVC spring tube | 1000 |
| 1500 | |||
| 2000 | |||
| GF10-1-LR(AAAR-004S) | Flexible SUS tube | 1000 | |
| 1500 | |||
| 2000 |
Gooseneck Fiber Optic Bundles
Custom-made products are available upon request.
Single Gooseneck Fiber Optic Bundle φ5
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF5-1-L500K/(AAAK-002S) | φ5 | Interlocking SUS tube | 500 |

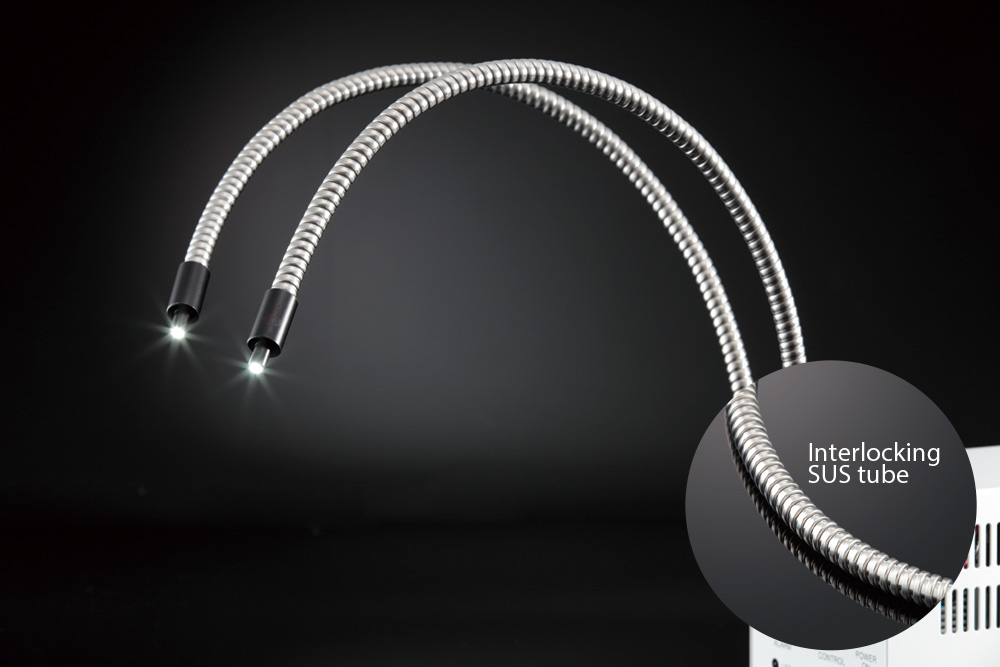

Dual Gooseneck Fiber Optic Bundle φ5.6
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF5.6-2-L500R(AAAK-005T) | φ5.6 | Interlocking SUS tube | 500 |
Multi Branch Fiber Optic Bundles
Custom-made products are available upon request.
Dual Branch Bundle φ5.6
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF5.6-2-L1500P(AAAP-006W) | φ5.6 | PVC spring tube | 1500 |
| GF5.6-2-L1500R(AAAR-006W) | Flexible SUS tube | 1500 |
Dual Branch Bundle φ9.9
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF9.9-2-L1500P(AAAP-007W) | φ9.9 | PVC spring tube | 1500 |
| GF9.9-2-L1500R(AAAR-007W) | Flexible SUS tube | 1500 |
Triple Branch Bundle φ6.9
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF6.9-3-L1500P(AAAP-008T) | φ6.9 | PVC spring tube | 1500 |
| GF6.9-3-L1500R(AAAR-008T) | Flexible SUS tube | 1500 |
Fiber Optic Ring Light Guides
Custom-made products are available upon request.

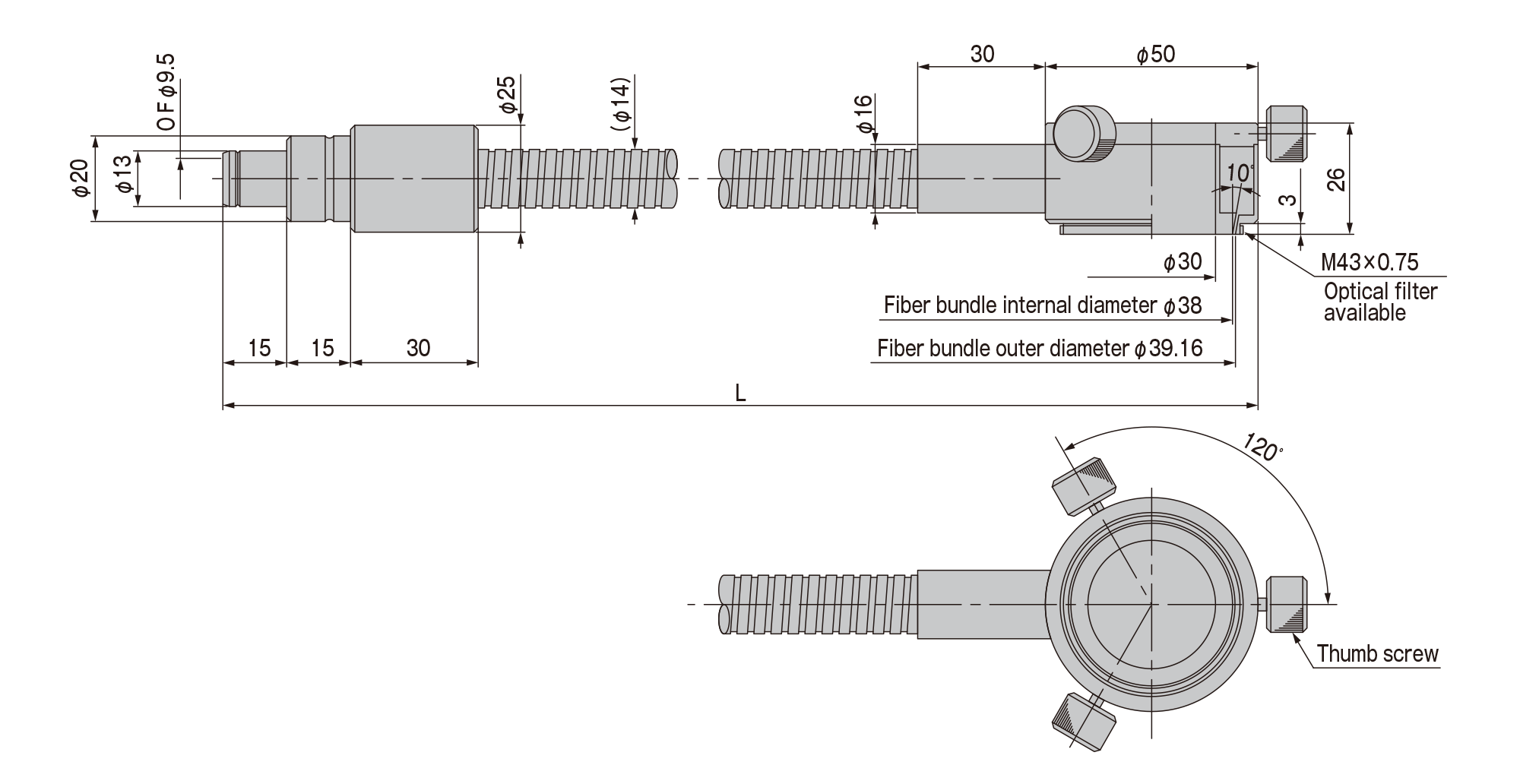

Fiber Optic Ring Light Guides φ30
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| R30-1-LP(AAAP018R) | φ30 | PVC spring tube | 1000 |
| 1500 | |||
| R30-1-LR(AAAR018R) | Flexible SUS tube | 1000 | |
| 1500 |
Fiber Optic Ring Light Guides φ50
Custom-made products are available upon request.
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| R50-1-LP(AAAP019R) | φ50 | PVC spring tube | 1000 |
| 1500 | |||
| R50-1-LR(AAAR019R) | Flexible SUS tube | 1000 | |
| 1500 |

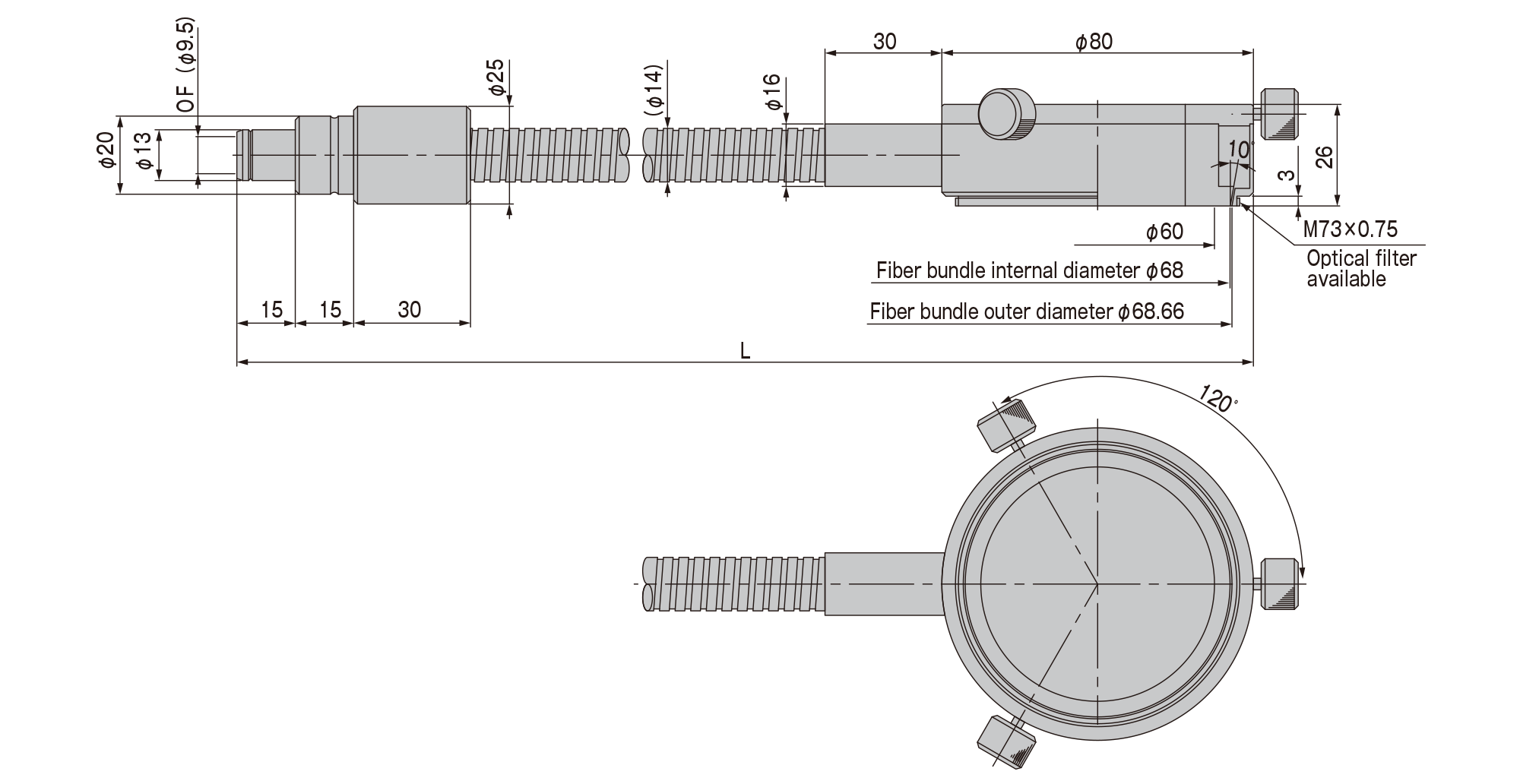

Fiber Optic Ring Light Guides φ60
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| R60-1-LP(AAAP020R) | φ60 | PVC spring tube | 1000 |
| 1500 | |||
| R60-1-LR(AAAR020R) | Flexible SUS tube | 1000 | |
| 1500 |

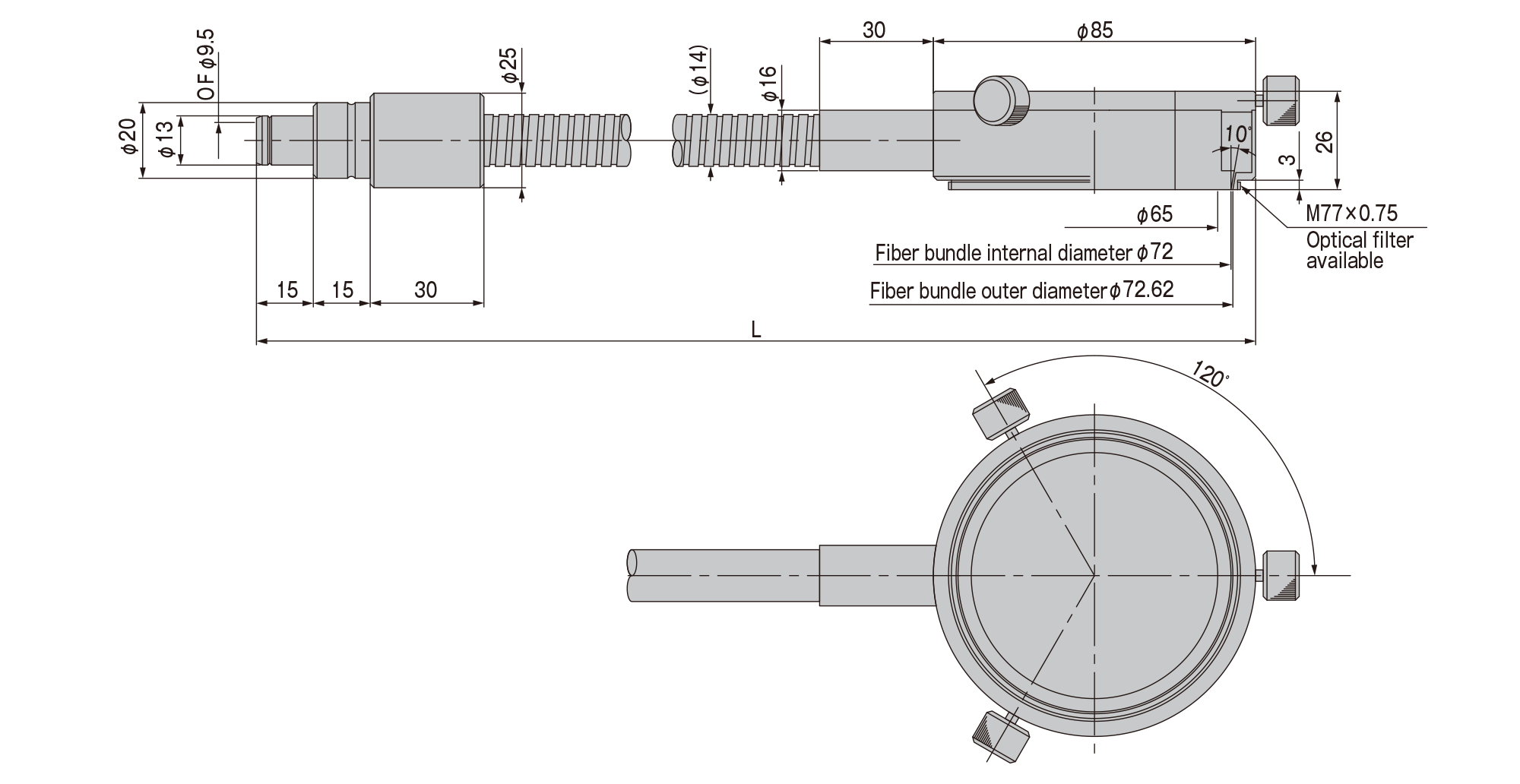

Fiber Optic Ring Light Guides φ65
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| R65-1-LP(AAAP021R) | φ65 | PVC spring tube | 1000 |
| 1500 | |||
| R65-1-LR(AAAR021R) | Flexible SUS tube | 1000 | |
| 1500 |
Fiber Optic Line Lights
Custom-made products are available upon request.
Fiber Optic Line Light OF50
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF5.6-1-L1500P-S50(AAAP-013S) | 50 | PVC spring tube | 1500 |
| GF5.6-1-L1500R-S50(AAAR-013S) | Flexible SUS tube | 1500 |
Fiber Optic Line Light OF100
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF8-1-L1500P-S100(AAAP-014S) | 100 | PVC spring tube | 1500 |
| GF8-1-L1500R-S100(AAAR-014S) | Flexible SUS tube | 1500 |
Fiber Optic Backlights
Custom-made products are available upon request.
Backlight 80×80
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF7.2-1-L1500P-M80(AAAP-015M) | 80×80 | PVC spring tube | 1500 |
| GF7.2-1-L1500R-M80(AAAR-015M) | Flexible SUS tube | 1500 |
Backlight 50×50
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF6.7-1-L1500P-M50(AAAP-016M) | 50×50 | PVC spring tube | 1500 |
| GF6.7-1-L1500R-M50(AAAR-016M) | Flexible SUS tube | 1500 |
Backlight 30×30
| Model No. | Tubing diameter | Sheathing | Length |
|---|---|---|---|
| GF6.2-1-L1500P-M30(AAAP-017M) | 30×30 | PVC spring tube | 1500 |
| GF6.2-1-L1500R-M30(AAAR-017M) | Flexible SUS tube | 1500 |
