Light Rod Conduits/ Fiber Rods
Rigid Fiber Rods have excellent light transmission

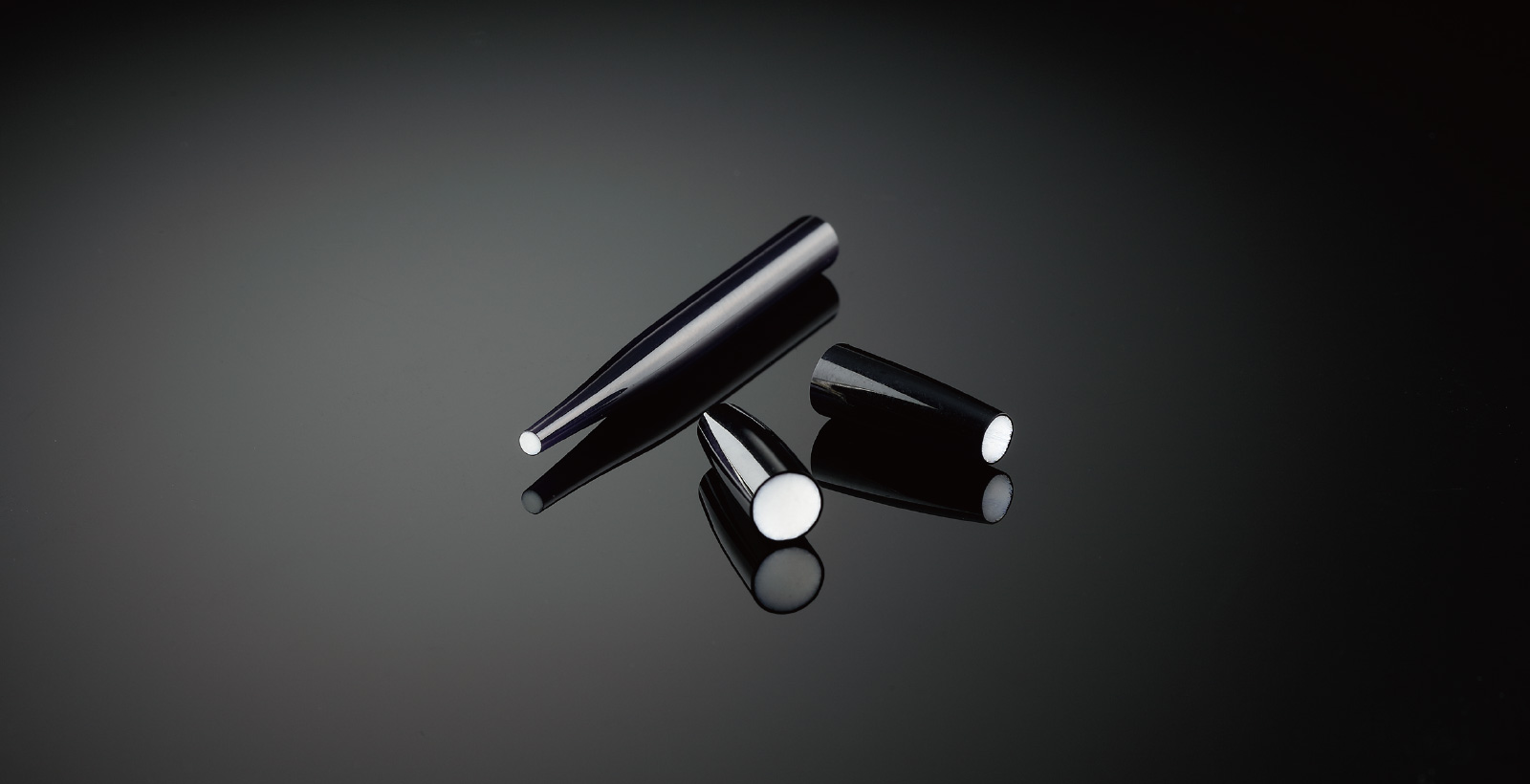

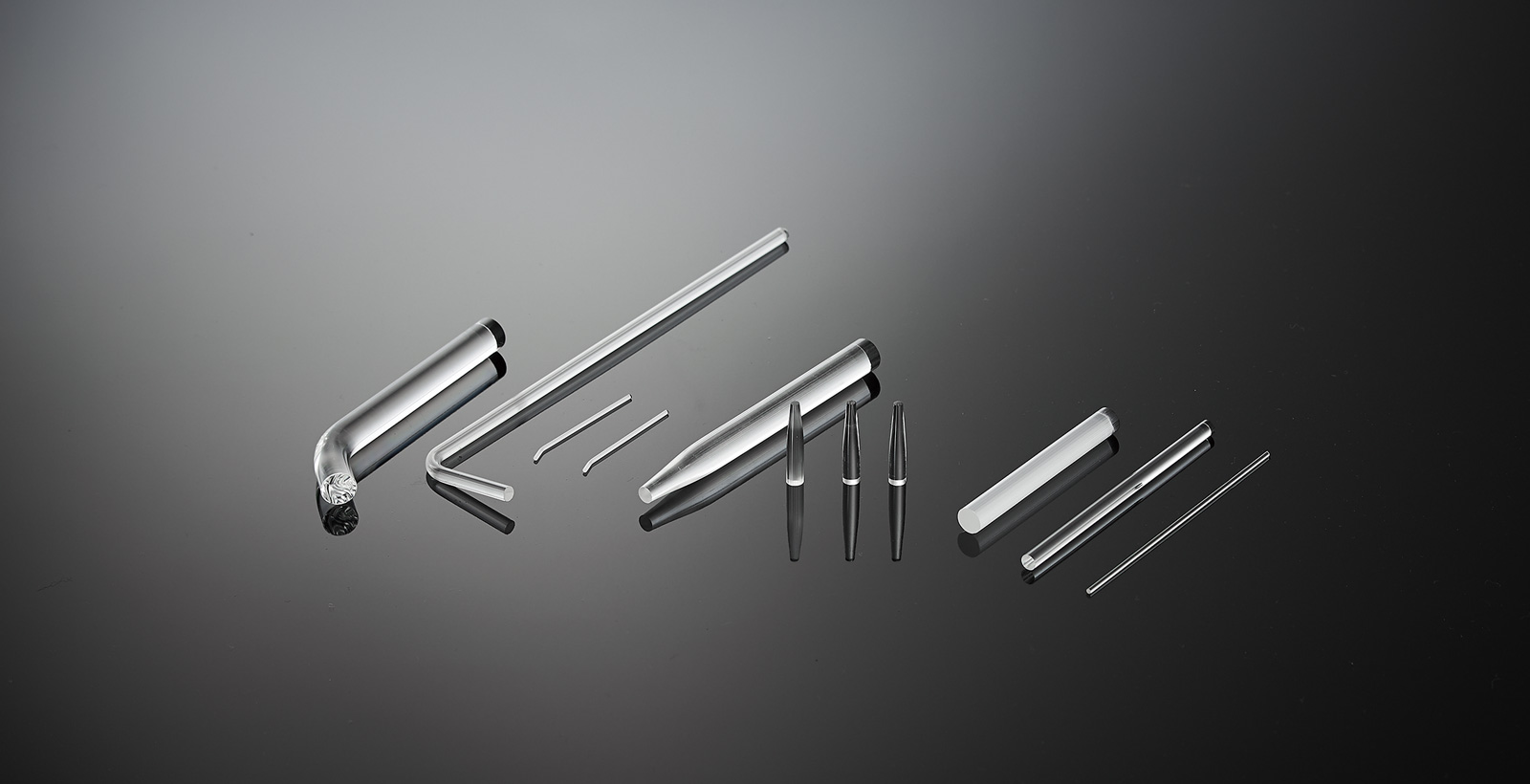

Light Rod Conduits are rigid fiber rods which consist of core and cladding. Cores and claddings are fused together without adhesive. Light Rod Conduits have higher transmittance than epoxied light guides and have a higher resistance to high temperature.

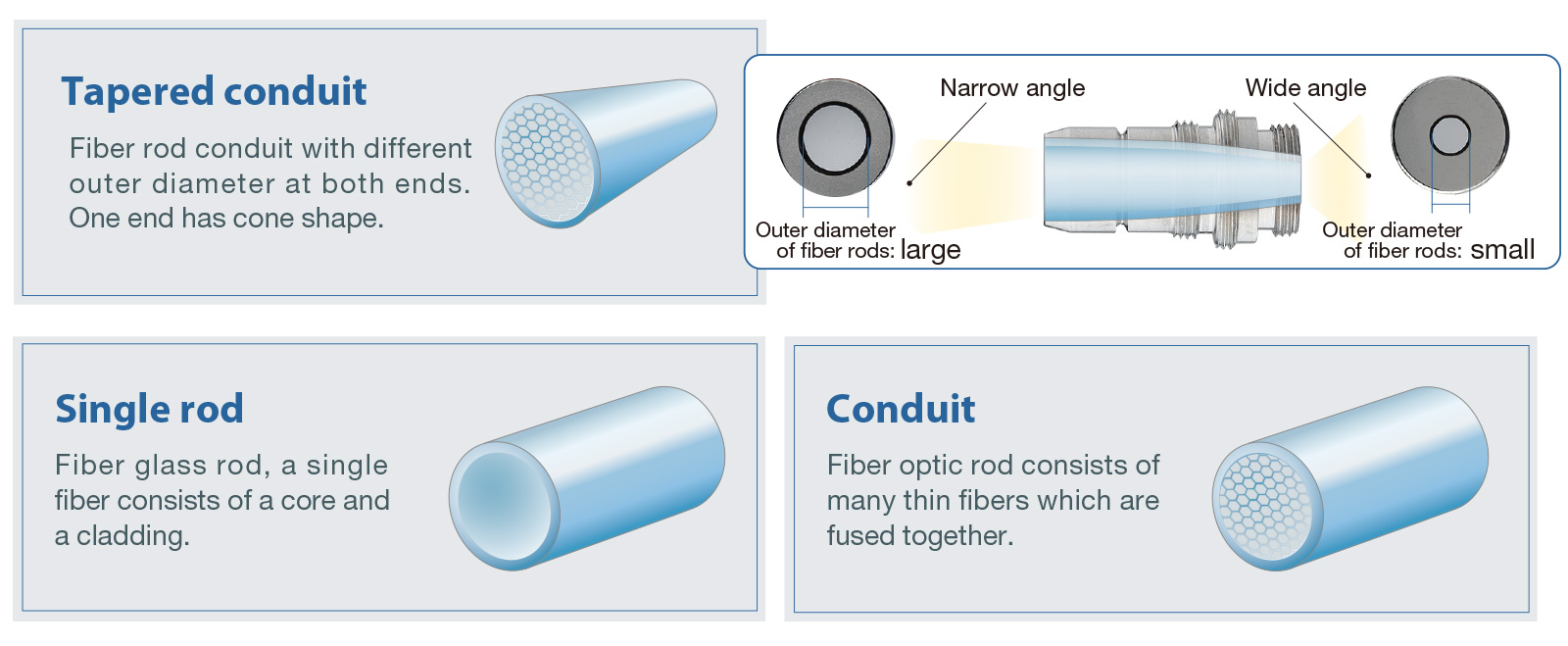

Type of Rods
Specifications
| Type of rod | Name | NA | Opening angle | Diameter | Length |
|---|---|---|---|---|---|
| Conduit | SMC-120 | 0.86 | 119 | φ1.5〜13mm | 2〜300mm (Depends on outer diameter) |
| SMC-80 | 0.64 | 80 | |||
| SMC-70 | 0.57 | 70 | |||
| SMC-35 | 0.30 | 36 | |||
| SMC-15 | 0.15 | 18 | |||
| Pressed conduit | SPC-70 | 0.56 | 68 | Please contact us | |
| Single rod | SSR-160 | 0.98 | 163 | φ0.5〜10mm | 2〜1,000mm (Depends on outer diameter) |
| SSR-120 | 0.86 | 119 | |||
| SSR-80 | 0.64 | 80 | |||
| SSR-70 | 0.57 | 70 | |||
| Glass rod | Each glass type | - | - | φ0.5〜10mm | 2〜900mm |
