Optical Filters and Specialty Glasses
NIR to Visible Light Converting Glass
YAGLASS-T
- YAGLASS-T detects/ converts near-infrared (NIR) light, such as YAG laser beam, to visible light.
- YAGLASS-T is high transparent glass which contains nano-sized crystals.
- High threshold against high-power YAG lasers
- Compared to previous version (“YAGLASS”), YAGLASS-T is lightweight, more resistant to breakage and chipping.
- Dimensions of a standard (non-customized) product are 20 x 20 x 2.5 mm. Custom dimensions are available upon request.
- Same emission intensity (0.55 μm) as the previous version, YAGLASS
- RoHS: Compliant
Emission Spectrum

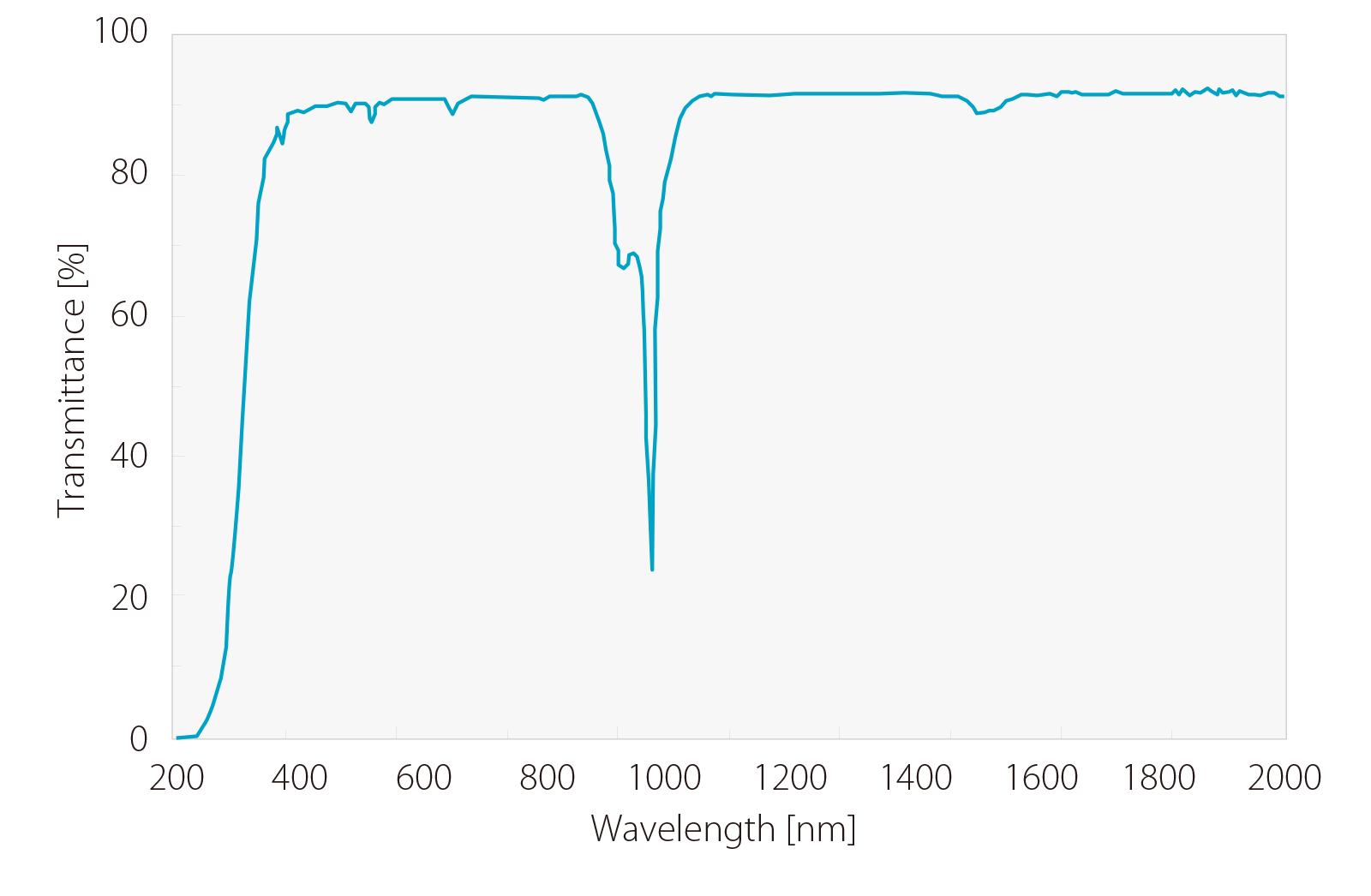

Transmission Spectrum
Specifications and Basic Properties
| Dimensions of detection glass (standard products) | 20 x 20 x 2.5 mm |
|---|---|
| Detectable range of wavelength | 0.9 - 1.07 μm |
| Detecting sensitivity (when laser at 1.06 μm is used) |
30 mW/mm² |
| Emission wavelength | 0.55 μm，0.66 μm |
| Surface damage threshold (laser irradiation at wavelength of 1.06 μm and pulse width of 10 ns) |
51 J/cm² |
| Refractive index (nd) | 1.539 |
| Transformation point (Tg) | 584℃ |
| Thermal expansion (100 - 300℃) | 89×10-7/℃ |
| Specific gravity S.g | 3.4 |
Warning
- Never look at laser beam directly or through lens. Diffused reflected beam is also harmful.
- Wear laser protective goggles for operator's eyes. The goggles should be used against scattered beam, so avoid to direct beam or reflection beam.
- The detection part is made of glass. Please handle with care.
Detection Image
